HLG Meanwell Driver 200w 150w High Bay Led Lighting

Brand Name : Yahua lighting

Model Number : YHZ-HBLC

Certification : CE ROHS

Place of Origin : China

MOQ : 1pc

Price : USD48.00-50.00/pc

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram, L/C

Supply Ability : 1000pcs

Delivery Time : 5-8Days

Packaging Details : Foam+Carton

Material : Aluminum

Input Voltage(V) : 85v-277V

Color Temperature : 3000K/4000K/5000K/6000K

Driver : HLG Meanwell

Item Type : Indoor commerical high bay light

Warranty : 3-5 Years

Contact Now

High efficient heat pipe commerical induction 200w 150w led high bay light linear high bay lighting



1.CE ROHS TUV Certified


2.Low power consumption, high luminous efficiency and energy saving


3. Easy to install and use.


4.High efficiency,high accuracy, and long-life constant current LED power supply, the efficiency can reach as high as 91%


5.No risk of mercury emission, No UV or RF interfcernce, No mercury or lead, environmental protection


6.High heat conductivity, low luminous decay, pure light color and no ghosting.

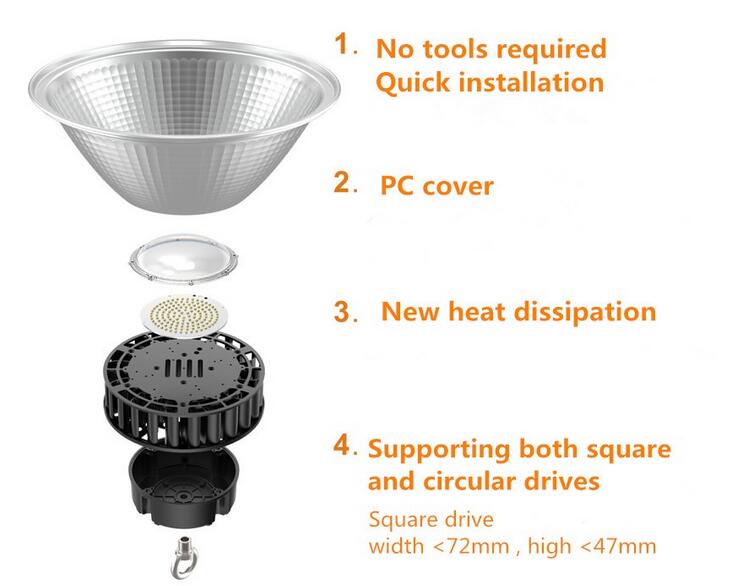

7.Integrative design for heat sink and housing; The LED is closely connected to the surface.
The heat From the LED is removed through the heat dissipation wing and also by air ventilation.


8.The surface is passed through anodic oxidation treatment. Its structure is compact and beautiful.


9.Using high quality aluminum for production, fine workmanship, elegant appearance


10.Recommend the use of warm white and white. Long life span with 50,000 hrs.



Technical Data sheet:



Power 60W 100W 150W 200W 300W 400W
Model YHZ-HBLA-60W YHZ-HBLA-100W YHZ-HBLA-150W YHZ-HBLA-200W YHZ-HBLA-300W YHZ-HBLA-400W
Replacement HPS 150W HPS 200W HPS 300W HPS 400W HPS 600W HPS 1000W
Luminous Flux 7800lm 13000lm 19500lm 26000lm 36000lm 48000lm
Light Source SMD LED
Luminous Efficacy 130lm/W
IP 48
Voltage 85-277VAC/50-60HZ
CRI >80
Control System APP, remote control, touch screen, light control and other control options available
Operation Temp. -40 to +60℃
CCT 2700K SW/3000K WW/4100K NW/5000K DW/5700K CW
Life Span 50,000 hours at 25℃
Dimming
Dimmable Option
Accessories Different installation accessories:A - Ring mounting;B - Bracket mounting

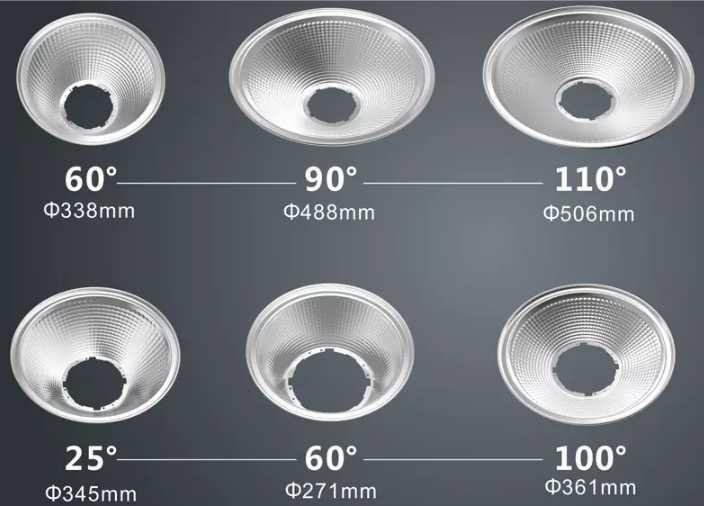

Beam Angle
120°(transparent,matte) 60° 90° (lens)
PF >0.95
Cover Transparent,matte,lens available
Warranty 3-5 Years
PC Cooler heatsink use the HDT Technology:
Pure Copper heatpipes directly touch the heat souce which could quickly transer heat to the heatsink with the heat transfer rate over 200 times of the aluminum radiator.
